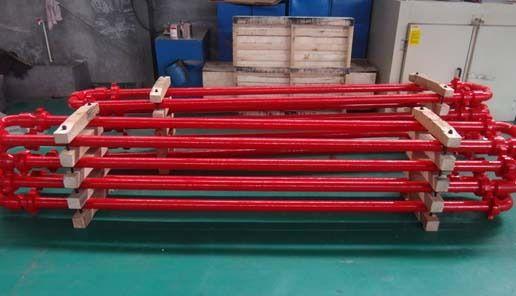

Circulation Hose-loop

Circulation Hose Loop is a high-pressure flexible hose assembly designed for drilling and well-service fluid circulation systems. It provides a flexible connection between stationary and moving equipment while safely handling drilling mud, completion fluids and other high-pressure fluids.

Key Specifications

Type: High-pressure drilling/circulation hose loop

Application: Drilling rigs, well servicing and fluid circulation systems

Service: Drilling mud, completion fluids, cement and other compatible fluids

Working Pressure: Typically 3,000–10,000 psi, depending on configuration

Test Pressure: Typically 1.5 × working pressure

Size: Commonly 2", 3", 4" and 5" ID

Length: Custom lengths available

End Connections: Hammer unions, flanges or other API-compatible connections

Construction: Multi-layer reinforced rubber/thermoplastic hose with high-strength steel reinforcement

Temperature Rating: Typically up to 100–120°C, depending on hose specification

Standards: Available to applicable API 7K / API 16C requirements, depending on hose type and service

Cover: Abrasion-, weather- and oil-resistant

Configuration: Single or multiple hose loops depending on pressure and flow requirements

Applications

Mud circulation systems

Standpipe and mud pump connections

Wellhead and choke manifold connections

Cementing and well-servicing operations

Offshore and onshore drilling rigs

High-pressure fluid transfer

Available for Sale: New and inspected circulation hose loops can be supplied in different sizes, pressure ratings, lengths and connection configurations to meet project requirements.
