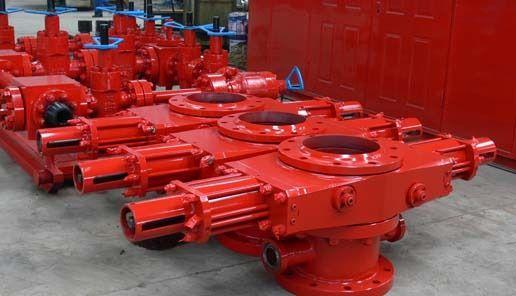

RAM BOP

Driscoil Equipment supplies Ram Blowout Preventers (Ram BOPs) for sale and lease in Nigeria. Ram BOPs are critical well-control equipment used to seal the wellbore, contain formation pressure and prevent uncontrolled flow during drilling, completion and workover operations.

A Ram BOP uses hydraulically operated rams to close around tubulars or seal the wellbore when required.

Technical Specifications

Specification Typical / Available Configuration

Equipment Type Ram Blowout Preventer

Application Drilling / Workover / Well Control

Working Pressure 3,000–20,000+ psi

Nominal Bore 7⅟₁₆", 11", 13⅝", 16¾", 18¾", 21¼" and other sizes

Ram Configuration Pipe / Blind / Shear / Variable Bore

Closing System Hydraulic

Opening System Hydraulic

Body Construction Forged / High-strength alloy steel

Connection Type Flanged

API Standard API 16A / applicable specification

Temperature Class Model dependent

Material Class API / NACE options

Pressure Test Hydrostatic

Control System BOP Control Unit

Annular Connection Stackable with annular BOP

Ram Cavity Single / Double

Operating Fluid Hydraulic control fluid

Sour Service NACE-compliant configurations available

Application Environment Onshore / Offshore

Availability Sale / Lease / Rental
