SCRAPER

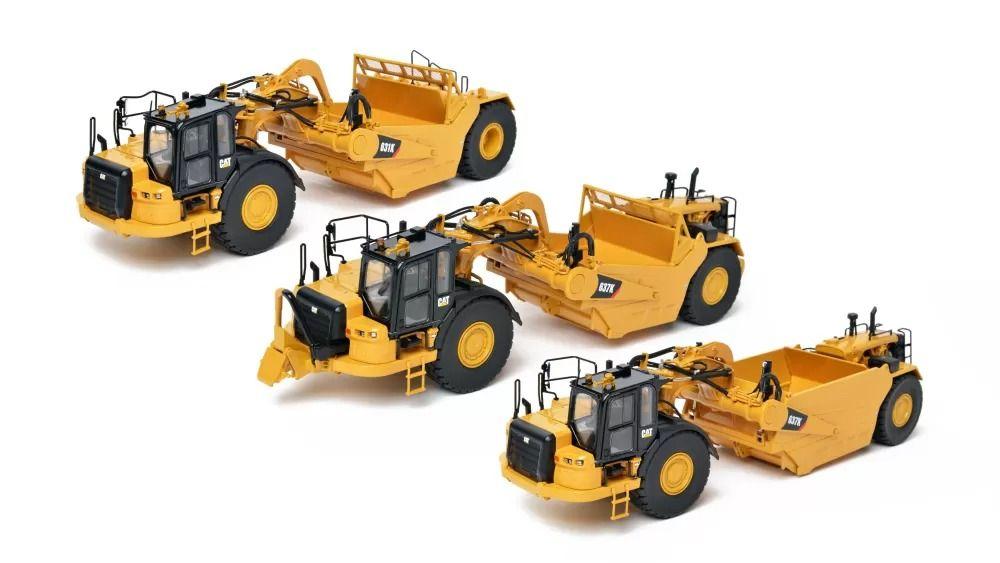

Driscoil Equipment supplies heavy-duty Scrapers designed for the efficient removal, collection, grading, spreading and movement of soil, mud, sludge and bulk materials. Scrapers are widely used in construction, civil engineering, mining, quarrying, agriculture and large-scale earthmoving operations.

Detailed Technical Specification

Specification Typical Range / Description

Equipment Type Earthmoving Scraper

Configuration Motor Scraper / Towed Scraper / Elevating Scraper

Power Source Diesel engine or tractor-towed

Engine Power Approximately 200–700 HP for motor scrapers

Bowl Capacity Approximately 10–45 m³

Heaped Capacity Model dependent

Cutting Width Approximately 2.5–4.5 m

Cutting Depth Approximately 300–500 mm

Apron Capacity Model dependent

Ejector System Hydraulic ejector

Transmission Powershift / automatic transmission

Drive Configuration 4×2 / 6×4 / 8×4 or articulated configuration

Operating Speed Approximately 30–50 km/h

Hydraulic System High-pressure hydraulic system

Steering Hydraulic power steering / articulated steering

Tyres Heavy-duty earthmoving tyres

Operating Weight Approximately 20–70+ tonnes

Ground Clearance Application/model dependent

Cabin Enclosed operator cabin

Operator Protection ROPS/FOPS where specified

Blade/Cutting Edge Replaceable hardened cutting edge

Controls Hydraulic joystick/control levers

Braking System Hydraulic or air-over-hydraulic service brakes

Fuel Capacity Model dependent

Application Earthmoving, grading, excavation and material transport

Main Components

1. Scraper Bowl

The bowl collects and carries excavated material. Its capacity determines the quantity of material that can be transported per cycle.

2. Cutting Edge

A hardened, replaceable cutting edge penetrates and cuts the ground during excavation.

3. Apron

The hydraulic apron controls the opening of the bowl during cutting, loading and unloading.

4. Ejector

The hydraulic ejector pushes material from the bowl during discharge, allowing controlled and efficient unloading.

5. Hydraulic System

Provides power for the bowl, apron, ejector, steering and other operating functions.

6. Tractor / Prime Mover

For towed scraper configurations, the scraper is pulled by a suitable tractor or heavy-duty earthmoving machine.

Key Technical Features

High-volume earthmoving capability

Hydraulic bowl and apron operation

Controlled material loading and discharge

Replaceable cutting edges

Heavy-duty chassis construction

High traction on demanding terrain

Large material-carrying capacity

Suitable for long-distance earthmoving

Hydraulic ejector for efficient unloading

Designed for continuous construction-site operation

Typical Applications

Construction & Civil Engineering

Road construction

Highway development

Site preparation

Land grading

Embankment construction

Airport construction

Large-scale excavation

Mining & Quarrying

Overburden removal

Site preparation

Material movement

Mine-road construction

Land reclamation

Agriculture & Land Development

Land levelling

Field preparation

Drainage projects

Large-scale soil movement

Available Configurations

Motor Scraper

Self-propelled scraper with an integrated diesel engine and transmission.

Towed Scraper

Pulled by a tractor or suitable prime mover and generally used for earthmoving applications where the towing machine provides the required power.

Elevating Scraper

Uses an elevator mechanism to assist in loading material into the bowl, reducing the requirement for certain loading conditions.

Safety Features

Depending on the model, the scraper can be equipped with:

ROPS/FOPS operator protection

Hydraulic overload protection

Emergency braking system

Parking brake

Reverse alarm

Warning beacon

Work lights

Seat belt/restraint system

Hydraulic pressure monitoring

Engine and transmission protection systems
