Throttle Manifold

Throttle Manifold

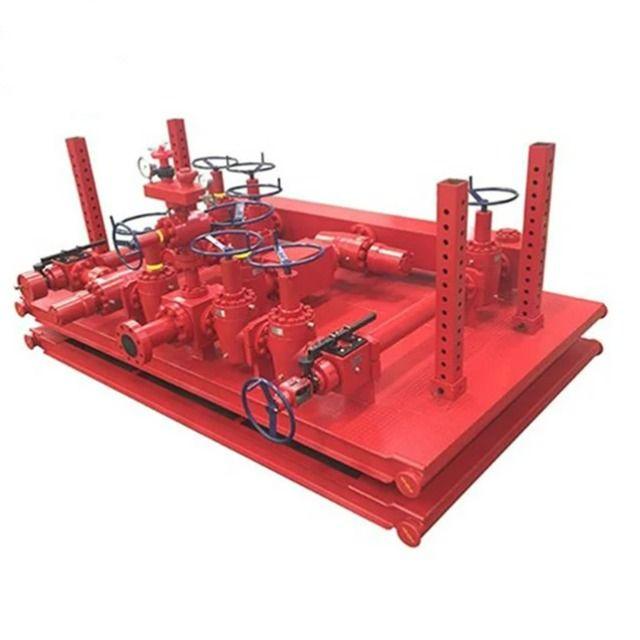

A throttle manifold, commonly referred to as a choke manifold, is a high-pressure well-control assembly used to regulate and safely control the flow and pressure of formation fluids when the BOP is closed. It consists of interconnected valves, chokes, pressure gauges, spools and flow lines.

API Specification 16C covers choke and kill equipment, including choke and kill manifold assemblies and drilling choke actuators and controls.

Typical Technical Specifications

• Parameter Typical Range
• Working Pressure 2,000–20,000+ psi
• Common Ratings 3K, 5K, 10K, 15K, 20K psi
• Main Bore 2-1/16", 3-1/8", 4-1/16"
• Choke Type Fixed, manual adjustable, hydraulic/remote
• Connection API flanged/studded
• Standard API 16C
• Valve Standard API 6A
• Service Oil, gas, mud, brine
• Temperature Application dependent
• Sour Service NACE MR0175/ISO 15156 where required

Applications

• Onshore and offshore drilling rigs.
• Blowout preventer and well-control systems.
• Well-kick circulation and pressure management.
• Oil and gas well drilling and workover operations.
• Drilling contractors and oilfield service companies.
• Driscoil Equipment Solutions

Driscoil Energy Services Limited supports the sourcing, sale and leasing of oilfield equipment for drilling and well-control projects, subject to availability and project requirements.

Contact our team to discuss Throttle Manifold specifications, pressure ratings, inspection documentation, certification and mobilisation requirements for your project.
