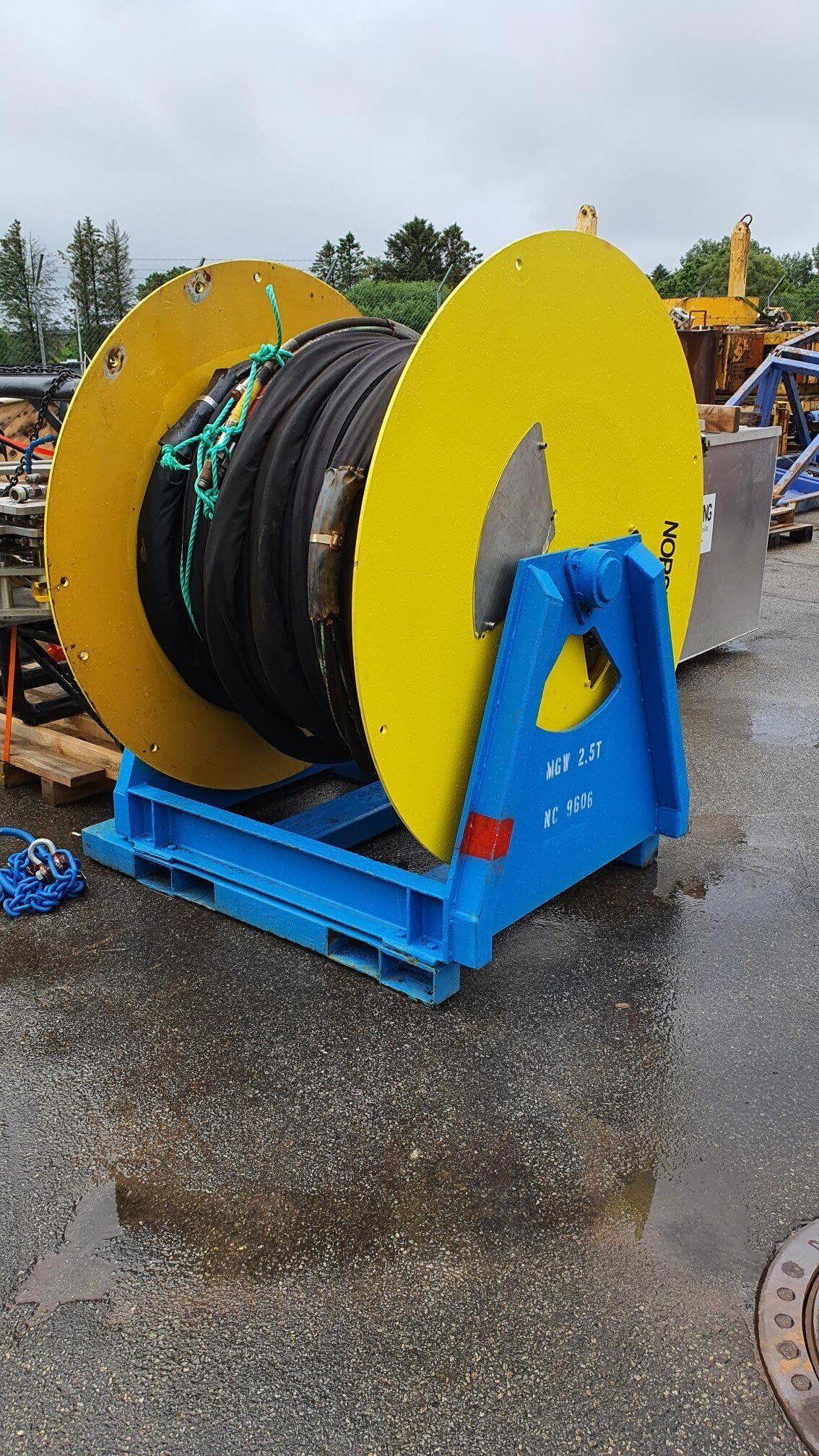

Umbilical Reel (Subsea)

Umbilical Reel (Subsea)

A Subsea Umbilical Reel is a heavy-duty storage and deployment system designed to safely transport, store, deploy, and retrieve subsea umbilicals used in offshore oil and gas operations. Subsea umbilicals carry hydraulic fluids, electrical power, fibre-optic communication, and chemical injection lines between offshore facilities and subsea production equipment. Umbilical reels ensure controlled handling of these critical lines, preventing damage during installation, maintenance, and recovery.

Our Subsea Umbilical Reels are available for sale and lease, providing dependable cable handling solutions for offshore drilling, subsea construction, and field development projects.

Applications

Offshore oil and gas production

Subsea field development

Umbilical installation and retrieval

Offshore drilling operations

FPSO and floating production systems

Subsea construction projects

ROV support operations

Pipeline and cable laying

Well intervention

Maintenance and decommissioning activities

Technical Features

Heavy-duty welded steel drum construction.

High-capacity storage for hydraulic and electro-hydraulic umbilicals.

Hydraulic or electric drive system for controlled spooling.

Variable speed operation with precise tension control.

Level wind mechanism for even cable distribution.

Corrosion-resistant marine-grade coating.

High-strength shaft and bearing assemblies.

Integrated braking and locking system for safe transport.

Suitable for harsh offshore and subsea environments.

Designed for easy mobilisation and offshore installation.

Available Types

Hydraulic Umbilical Reel

Electric Umbilical Reel

Skid-Mounted Umbilical Reel

Deck-Mounted Umbilical Reel

Portable Umbilical Reel

High-Capacity Umbilical Reel

Custom-Engineered Subsea Umbilical Reel

Typical Specifications

Parameter Specification

Reel Capacity Up to 10,000 m (application dependent)

Umbilical Diameter 25 mm – 250 mm

Drive System Hydraulic or Electric

Pulling Capacity Up to 100 tonnes

Line Speed Variable speed control

Frame Material High-strength structural steel

Coating Offshore-grade epoxy marine coating

Standard API 17E, DNV, ISO 13628 (as applicable)

Key Benefits

Protects subsea umbilicals during storage and transportation.

Ensures safe and controlled deployment and retrieval.

Minimises cable twisting, crushing, and damage.

Improves offshore installation efficiency.

Reduces manual handling and operational risks.

Heavy-duty construction for long service life.

Suitable for deepwater and shallow water operations.

Easy integration with offshore vessels and installation equipment.

Low maintenance and reliable performance.

Helps minimise non-productive time (NPT).

Industries Served

Offshore Oil & Gas

Subsea Engineering

Offshore Construction

Marine Engineering

Pipeline Installation

Renewable Offshore Energy

FPSO Operations

Well Intervention Services

Energy Service Companies

Subsea Installation Contractors

Umbilical Reel (Subsea) Sales and Lease

We supply new and refurbished Subsea Umbilical Reels from leading global manufacturers for both sale and short- or long-term lease. Every reel is thoroughly inspected, load-tested, and certified to ensure reliable performance in demanding offshore environments.

Our Sales & Leasing Services Include

New and refurbished subsea umbilical reels.

Daily, weekly, monthly, and project-based rental options.

Load testing and certification.

Inspection and refurbishment services.

Hydraulic and electric drive system support.

Spare parts and maintenance services.

Technical consultation for equipment selection.

Fast mobilisation for offshore projects.

Worldwide logistics and delivery.

Complete documentation, inspection reports, and test certificates.

Our Subsea Umbilical Reels are engineered to provide safe, efficient, and reliable handling of subsea umbilicals throughout offshore installation, production, and maintenance operations. Their robust construction, precise tension control, and dependable performance help operators protect valuable umbilicals, improve installation efficiency, and ensure the long-term reliability of subsea production systems.
