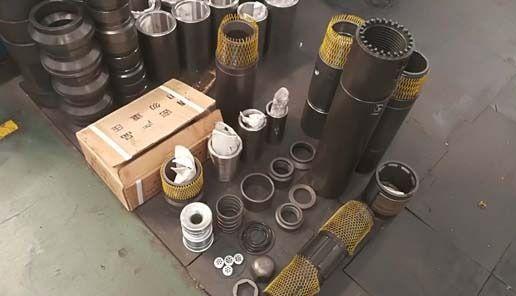

Mud Motor

Product Overview

A Mud Motor, also known as a Positive Displacement Motor (PDM), is a downhole drilling tool that converts the hydraulic energy of circulating drilling fluid into mechanical rotation at the drill bit.

Mud motors are widely used in directional drilling, horizontal drilling, vertical drilling, sidetracking and wellbore trajectory control. The motor allows the drill bit to rotate downhole without requiring the entire drillstring to rotate from surface.

Driscoil Equipment supplies mud motors for sale and lease, with configurations available for different hole sizes, drilling-fluid systems, operating depths and directional-drilling requirements.

Technical Specifications

Specification Typical Configuration

Equipment Type Positive Displacement Mud Motor (PDM)

Primary Function Downhole transmission of hydraulic energy into rotary motion

Application Directional, Horizontal & Vertical Drilling

Motor Type Positive Displacement / Moineau Motor

Main Components Power Section, Rotor, Stator, Bearing Section, Drive Shaft & Bit Connection

Power Source Drilling-fluid hydraulic flow

Rotation Downhole rotary output

Motor Configuration Straight / Bent Housing / Adjustable Bend

Bend Setting Model and configuration dependent

Rotor Helical steel rotor

Stator Elastomer-lined stator

Bearings Radial and thrust bearing system

Bit Connection API or customer-specified connection

Housing Material High-strength alloy steel

Drilling Fluid Water-based, oil-based or compatible drilling fluids

Operating Flow Rate Model and motor size dependent

Output Speed Flow rate and motor configuration dependent

Output Torque Model, differential pressure and flow dependent

Maximum Differential Pressure Manufacturer/model dependent

Operating Temperature Dependent on elastomer and motor configuration

Hole Size Compatibility Available for different hole sizes

Application Environment Onshore & Offshore

Availability For Sale & Lease
