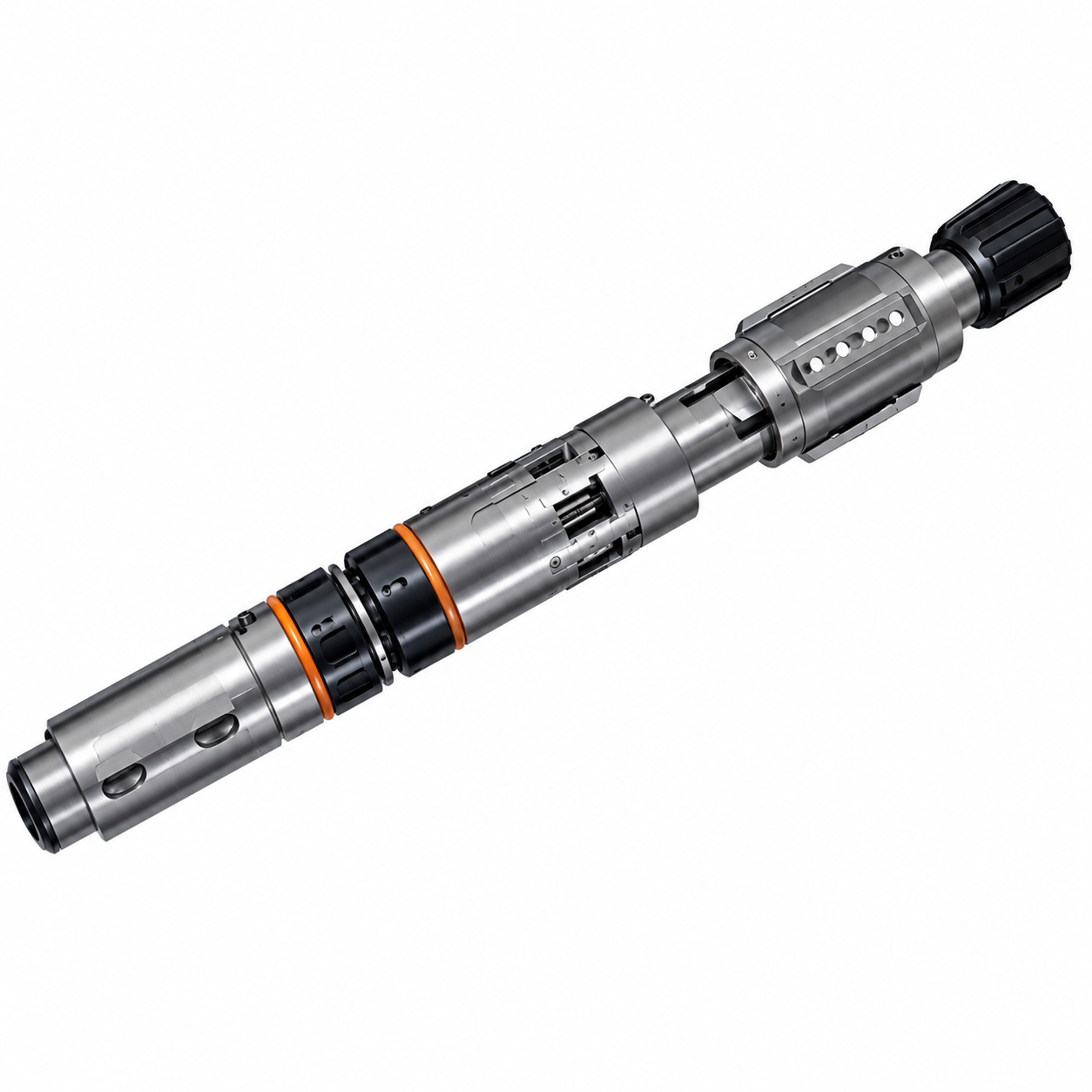

Bull Nose BOP Jetting

The Bull Nose BOP Jetting Tool is a specialized downhole wellbore-cleaning tool designed to remove drilling mud, cuttings, metal debris and other contaminants from BOP cavities, wellheads, risers and related well-control equipment. It uses strategically positioned jet ports to direct high-velocity drilling fluid against internal surfaces, helping dislodge debris and improve circulation during drilling, workover and well-intervention operations.

The bull-nose profile provides a smooth leading end for positioning and movement through the wellbore, while the jetting ports can be configured to provide downward and/or lateral cleaning action. Similar industry designs use multiple directional jet ports to improve coverage of BOP and wellhead cavities.

Technical Specifications

• Parameter Typical / Reference Specification
• Equipment Type Bull Nose BOP Jetting Tool
• Primary Function BOP, wellhead and wellbore cleaning
• Operation Hydraulic / circulating-fluid jetting
• Jet Ports Multiple integral or replaceable nozzle ports
• Reference Nozzle Configuration 8 integral jet ports on some models
• Reference OD Up to 6⅝ in (168.28 mm), model dependent
• Reference Length 36 in (914.4 mm), model dependent
• Reference Connection 5½ in XT-54 Box on selected model
• Reference ID 3.00 in blind bore on selected model
• Material High-strength alloy steel; AISI 4145 on referenced model
• Surface Treatment Phosphate coating or equivalent protective finish
• Bull Nose Rounded/streamlined leading profile
• Optional Feature Downhole magnet for metal-debris recovery
• Connection Options API or proprietary/high-torque connections, depending on model
• Nozzle Configuration Fixed or adjustable, depending on design

The specifications above are reference specifications rather than guaranteed specifications for the pictured tool. One commercially documented Bull Nose BOP Jetting Tool, for example, uses AISI 4145 alloy steel, an 8-port configuration, 6⅝-in maximum OD, 36-in length and a 5½-in XT-54 Box connection.

Driscoil Commercial Description

Bull Nose BOP Jetting Tool – For Sale & Lease

Driscoil Energy Services Limited offers specialized Bull Nose BOP Jetting Tools for drilling, completion, workover and well-intervention applications. The tools are designed to improve well-control equipment cleanliness by delivering targeted fluid jets to remove accumulated mud, cuttings and debris.

Availability: For Sale & Lease
Condition: Subject to inspection and availability
Configuration: Various sizes, connections and nozzle arrangements available
Applications: BOP Cleaning | Wellhead Cleaning | Riser Cleaning | Wellbore Cleanup | Workover | Completion | Well Intervention
