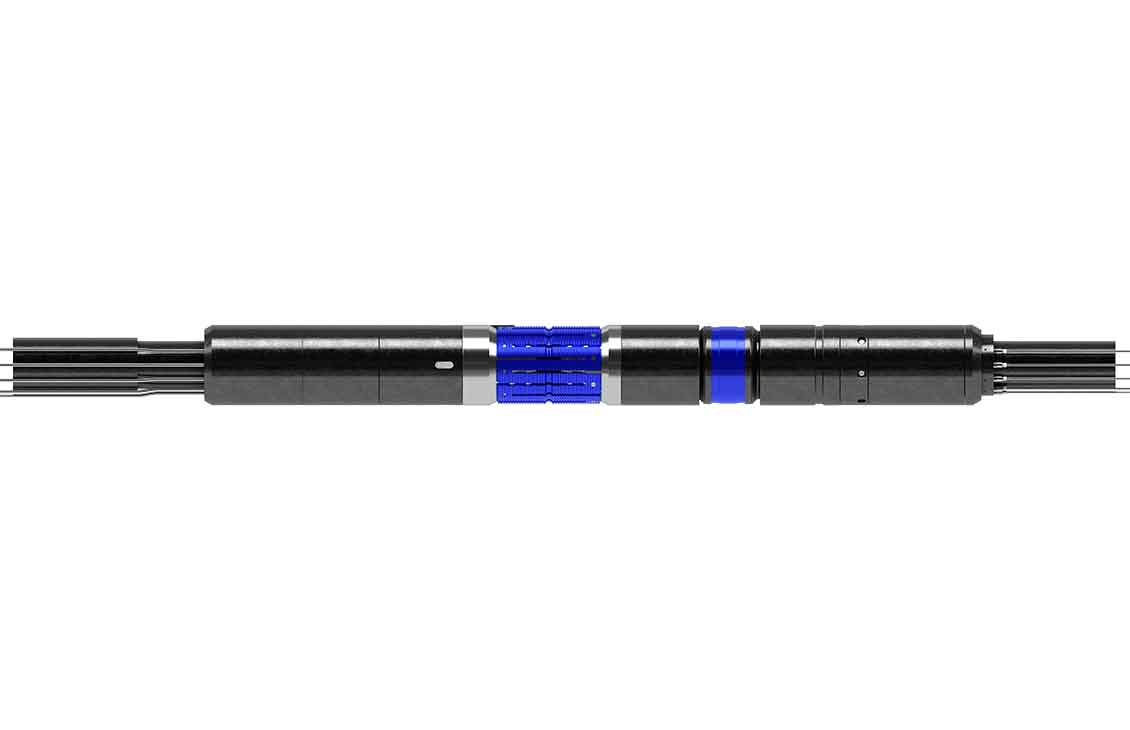

Completion Packer

Completion Packer is a critical downhole tool used in oil and gas wells to provide a pressure-tight seal between the production tubing and the casing. It isolates production zones, protects the casing from formation pressures, and ensures efficient and controlled hydrocarbon production.

Product Description

The Completion Packer is designed to create a secure seal within the wellbore during production, injection, testing, and stimulation operations. Manufactured from high-strength materials, it is capable of withstanding extreme downhole pressures, temperatures, and corrosive environments while maintaining long-term well integrity.

Key Features

Reliable tubing-to-casing seal

High-pressure and high-temperature (HPHT) capability

Available in permanent and retrievable designs

Compatible with a wide range of tubing and casing sizes

Corrosion-resistant construction

Hydraulic, mechanical, or wireline-set options

Enhanced well integrity and zonal isolation

Applications

Oil and gas production wells

Water injection wells

Gas injection operations

Multi-zone completions

Well testing operations

Stimulation and acidizing treatments

Enhanced oil recovery (EOR) projects

Benefits

Provides effective zonal isolation

Protects casing from production pressures

Improves production efficiency

Minimizes fluid migration between formations

Reduces operational risks and intervention costs

Supports long-term well performance

Types of Completion Packers

Permanent Packers – Designed for long-term installations and maximum sealing reliability.

Retrievable Packers – Can be removed and reused during future well interventions.

Hydraulic Set Packers – Activated using hydraulic pressure.

Mechanical Set Packers – Set by tubing manipulation and weight application.

Inflatable Packers – Expanded using fluid pressure to seal irregular wellbores.

Technical Specifications

Casing sizes: 4½" to 13⅜" and above

Pressure ratings: Up to 15,000 psi or higher

Temperature ratings: Up to 450°F (232°C) depending on model

Materials: High-strength alloy steel, stainless steel, and corrosion-resistant alloys

Seal elements: Nitrile, HNBR, AFLAS®, or specialized elastomers

Availability for Sale and Rental

Completion Packers are available for sale, rental, and field deployment services for offshore and onshore drilling operations. Equipment can be supplied with technical support, installation guidance, and compatibility assessment to meet specific well completion requirements.
