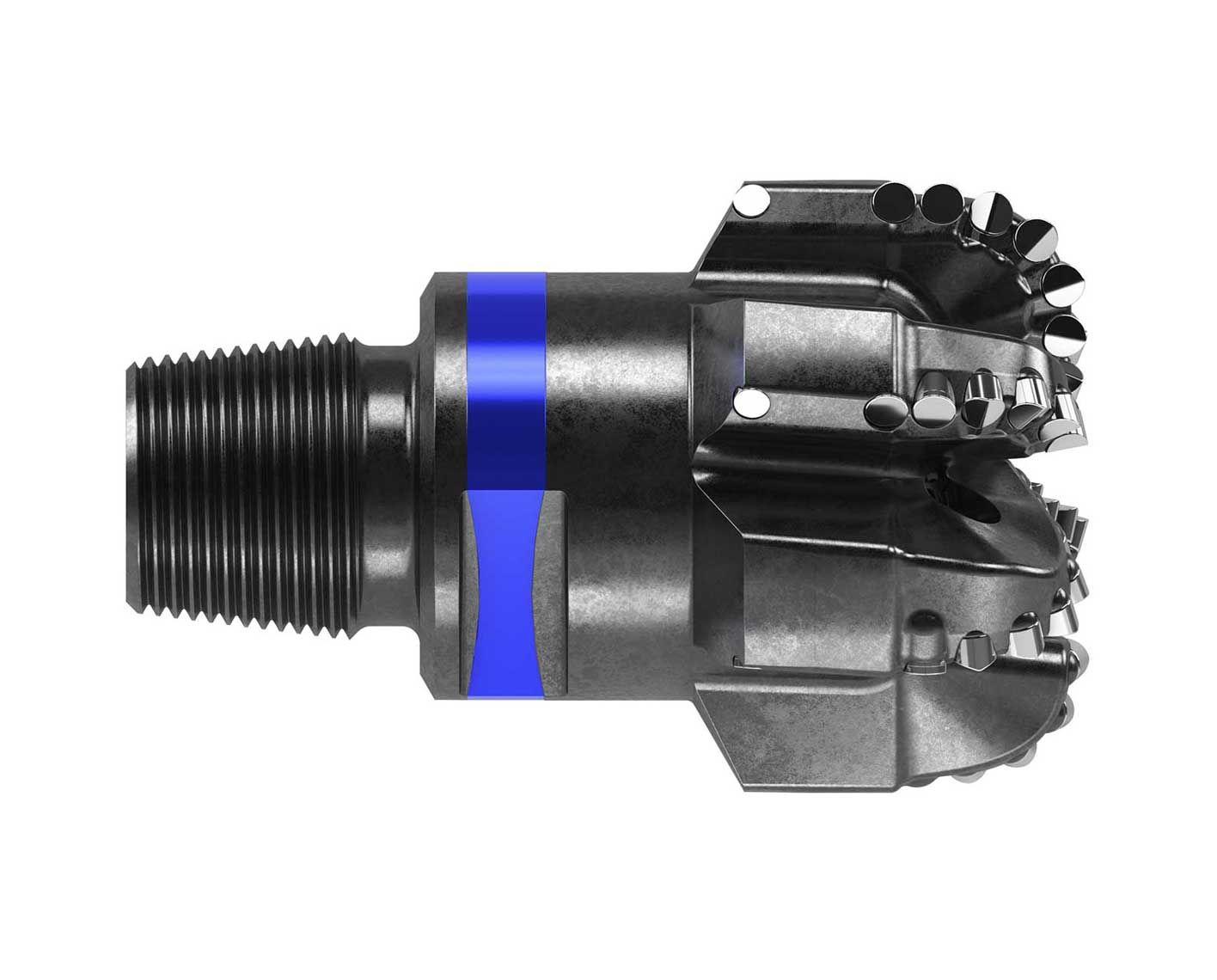

Drill Bit

Drill Bit

A Drill Bit is the primary cutting tool used in oil and gas, geothermal, mining, and water well drilling operations to penetrate rock formations and create a wellbore. Positioned at the bottom of the drill string, the drill bit converts rotary motion and weight-on-bit (WOB) into efficient cutting action, enabling the drilling of various geological formations ranging from soft shale to extremely hard abrasive rock.

Modern drill bits are engineered with advanced cutting structures and wear-resistant materials to maximise drilling efficiency, increase rate of penetration (ROP), reduce drilling time, and extend operational life.

Applications

Oil and gas exploration

Onshore drilling operations

Offshore drilling operations

Deepwater drilling

Directional drilling

Horizontal drilling

Geothermal drilling

Water well drilling

Mining exploration

Construction drilling

Extended Reach Drilling (ERD)

High-Pressure High-Temperature (HPHT) wells

Technical Specifications

Specification Details

Product Type Drill Bit

Manufacturing Standard API Spec 7-2

Material Alloy Steel Body, Tungsten Carbide, Polycrystalline Diamond Compact (PDC), Natural Diamond

Bit Size 3⅞" – 36"

Bit Type PDC, Tricone, Diamond, Hybrid, Drag Bit

Bearing Type Sealed Roller Bearing, Journal Bearing

Cutter Material PDC Cutters, Tungsten Carbide Inserts (TCI), Milled Teeth

Thread Connection API REG Pin

Operating Temperature Up to 250°C (482°F)

Operating Pressure Suitable for HPHT Applications

Hydraulic Nozzles Replaceable Jet Nozzles

Rotation Speed 60–300 RPM (Application Dependent)

Weight on Bit (WOB) Application Specific

Corrosion Resistance Excellent

Key Features

High drilling efficiency

Superior cutting performance

Durable wear-resistant construction

Optimised hydraulic design for efficient hole cleaning

High rate of penetration (ROP)

Excellent stability during drilling

Long service life

Reduced vibration

Suitable for a wide range of formations

Compatible with conventional and rotary steerable drilling systems

Working Principle

The drill bit is attached to the bottom of the drill string or Bottom Hole Assembly (BHA).

During drilling:

The drill string rotates the bit.

Weight-on-Bit (WOB) forces the cutters against the formation.

The cutting elements crush, shear, or scrape the rock.

Drilling fluid (mud) flows through the bit nozzles to cool the cutters and remove cuttings.

Rock cuttings are carried to the surface through the annulus.

Continuous rotation advances the wellbore to the planned depth.

Advantages

Faster drilling performance

Increased rate of penetration (ROP)

Lower drilling costs

Improved wellbore quality

Extended bit life

Reduced trips for bit replacement

Excellent directional drilling capability

Suitable for soft, medium, and hard formations

High resistance to wear and abrasion

Reliable performance in harsh drilling environments

Available Types

Polycrystalline Diamond Compact (PDC) Drill Bit

Tricone Roller Cone Drill Bit

Tungsten Carbide Insert (TCI) Bit

Steel Tooth (Milled Tooth) Tricone Bit

Diamond Drill Bit

Hybrid Drill Bit

Matrix Body PDC Bit

Steel Body PDC Bit

Drag Bit

Core Drill Bit

Bicentre Drill Bit

Reaming Drill Bit

Compatible Equipment

Drill Pipe

Heavy Weight Drill Pipe (HWDP)

Drill Collars

Non-Magnetic Drill Collars

Mud Motors

Rotary Steerable Systems (RSS)

Stabilizers

Reamers

Hydraulic Drilling Jars

Bottom Hole Assemblies (BHA)

Inspection Before Deployment

Inspect cutters or teeth for damage or wear.

Verify API thread condition.

Check bit body for cracks or impact damage.

Inspect nozzles for blockage or wear.

Confirm correct bit size and formation compatibility.

Ensure thread protectors are removed before installation.

Verify manufacturer certification and inspection reports.

Maintenance

Clean thoroughly after retrieval.

Inspect cutting structure for wear.

Replace damaged or worn nozzles.

Protect API threads with thread protectors during storage.

Store in a clean, dry environment.

Maintain detailed inspection and drilling performance records.

Recondition reusable drill bits where applicable.

Industries Served

Oil & Gas Exploration

Offshore Drilling Contractors

Onshore Drilling Companies

Geothermal Energy

Mining Exploration

Water Well Drilling

Civil Engineering

Construction

Energy Service Companies

Drill Bits Available for Sale & Lease

We supply premium-quality Drill Bits for sale and rental, providing high-performance drilling solutions for onshore, offshore, deepwater, and geothermal drilling operations. Our drill bits are manufactured to API standards and engineered to deliver maximum drilling efficiency, durability, and performance in the most demanding formations.

Our Services

Drill Bits for Sale

Short-Term Equipment Rental

Long-Term Lease

Complete Drill Bit Packages

Bulk Supply

Worldwide Delivery

Fast Equipment Mobilisation

Equipment Inspection & Certification

Technical Consultation

Bit Selection Support

After-Sales Service

Why Choose Our Drill Bits?

Manufactured to API Spec 7-2 and international quality standards

Available in PDC, Tricone, TCI, Diamond, Hybrid, and Drag Bit designs

Optimised for soft, medium, hard, and abrasive formations

Suitable for vertical, directional, horizontal, offshore, and deepwater drilling

Superior wear resistance and long operational life

Competitive pricing for both purchase and lease

Fast delivery and expert technical support

Our Drill Bits are engineered to maximise drilling performance, reduce non-productive time (NPT), and enhance overall operational efficiency. Whether you require a single drill bit or a complete drilling package for large-scale projects, we provide dependable equipment solutions backed by experienced technical support and responsive customer service.
