Drill Collar

Drill Collar

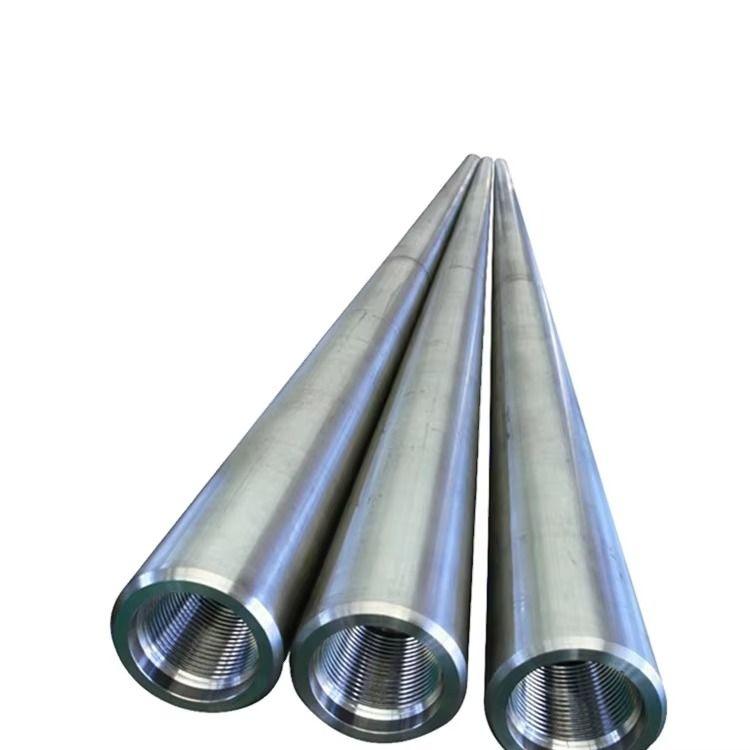

A Drill Collar is a heavy, thick-walled tubular component of the Bottom Hole Assembly (BHA) used in oil and gas drilling operations. Its primary function is to provide the weight on bit (WOB) necessary for efficient drilling while maintaining the stiffness and stability of the drill string. Drill collars help prevent buckling, improve directional control, and ensure smooth drilling performance in vertical, directional, and horizontal wells.

Manufactured from premium heat-treated alloy steel or non-magnetic materials, drill collars are designed to withstand extreme torque, compression, tension, and harsh downhole conditions.

Features

Manufactured from high-strength AISI 4145H modified alloy steel.

Provides optimal weight on bit (WOB) for efficient drilling.

Thick-walled construction for superior rigidity.

Precision-machined API connections.

Heat-treated for enhanced strength and durability.

Available in slick and spiral designs.

Hard-banded for increased wear resistance.

Reduces drill string vibration and buckling.

Suitable for HPHT (High Pressure High Temperature) applications.

Available in magnetic and non-magnetic versions.

Technical Specifications

Specification Details

Product Type Drill Collar

Standard API Spec 7-1

Material AISI 4145H Modified Alloy Steel

Optional Material Non-Magnetic Stainless Steel

Type Slick Drill Collar, Spiral Drill Collar, Non-Magnetic Drill Collar

Outside Diameter (OD) 3⅛" – 11"

Inside Diameter (ID) 1¼" – 3¼"

Length 30 ft (9.14 m) Standard; Custom lengths available

Connection API REG, IF, FH, NC Threads

Hardbanding Optional

Temperature Rating Up to 400°F (204°C)

Service Standard & Sour Service (NACE MR0175 / ISO 15156)

Types of Drill Collars

Slick Drill Collar

Spiral Drill Collar

Non-Magnetic Drill Collar

Flex Drill Collar

Pony Drill Collar

Heavy Weight Drill Collar

Directional Drill Collar

Short Drill Collar

Standard Drill Collar

Integral Drill Collar

Applications

Drill collars are widely used for:

Oil and gas exploration drilling.

Offshore drilling operations.

Onshore drilling operations.

Directional drilling.

Horizontal drilling.

Deepwater drilling.

Extended Reach Drilling (ERD).

Geothermal drilling.

Mining and exploration drilling.

HPHT drilling.

Bottom Hole Assembly (BHA) construction.

Rotary steerable drilling systems.

Compatible Equipment

Drill Bits

Drill Pipe

Heavy Weight Drill Pipe (HWDP)

Drill String Stabilizers

Mud Motors

Rotary Steerable Systems (RSS)

Measurement While Drilling (MWD)

Logging While Drilling (LWD)

Drilling Jars

Shock Subs

Hole Openers

Reamers

Crossovers

Advantages

Delivers the required weight on bit for efficient drilling.

Improves drilling accuracy and directional control.

Minimizes drill string buckling and vibration.

Enhances penetration rate (ROP).

Increases drill bit life.

Performs reliably in demanding drilling environments.

High resistance to torque, compression, and bending stresses.

Suitable for deep, directional, and horizontal wells.

Reduces non-productive time (NPT).

Long service life with low maintenance requirements.

Available Sizes

3⅛"

3½"

4⅛"

4¾"

5"

5½"

6¼"

6½"

6¾"

7"

7¾"

8"

8¼"

9½"

11"

(Custom sizes, bore diameters, and thread connections are available upon request.)

Industries Served

Oil & Gas Exploration

Offshore Drilling

Onshore Drilling

Geothermal Energy

Directional Drilling

Well Construction

Mining and Mineral Exploration

Energy Service Companies

Petroleum Production

Drill Collar Sales & Lease

We supply premium Drill Collars for both sale and rental, supporting drilling contractors, oilfield service companies, and energy operators with reliable Bottom Hole Assembly (BHA) components for a wide range of drilling applications. All drill collars undergo rigorous inspection, dimensional verification, magnetic particle inspection (MPI), ultrasonic testing (UT), and thread gauging to ensure compliance with API standards and dependable field performance.

Our inventory includes slick drill collars, spiral drill collars, and non-magnetic drill collars, available for short-term rentals, long-term leasing, and outright purchase.

Our Sales & Rental Services Include

New and refurbished drill collars.

Short-term and long-term rental options.

Slick, spiral, and non-magnetic drill collars.

API inspection and certification.

Magnetic Particle Inspection (MPI).

Ultrasonic Testing (UT).

Thread inspection and repair.

Hard banding and refurbishment services.

Equipment mobilization and demobilization.

Technical consultation and BHA design support.

Emergency equipment supply.

Nationwide and international delivery.

Our Drill Collars are engineered to deliver maximum strength, superior stability, and reliable drilling performance, helping operators optimise weight on bit, improve wellbore trajectory, reduce equipment wear, and maximise operational efficiency in both onshore and offshore drilling environments.
