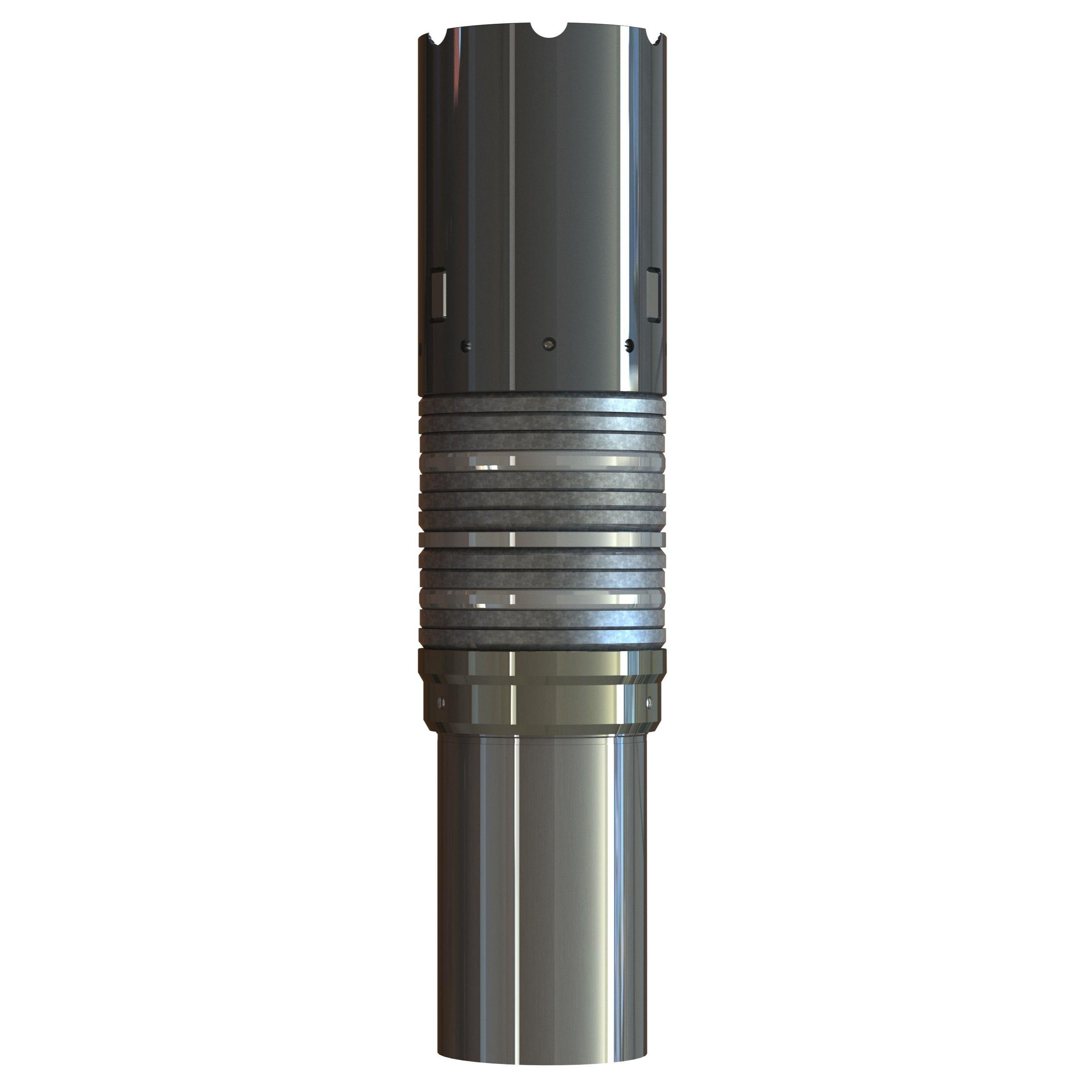

Expansion Joint

Expansion Joint

An Expansion Joint is a downhole completion tool designed to absorb axial movement, thermal expansion, contraction, and mechanical stresses within the tubing or completion string. It allows controlled movement between connected components while maintaining pressure integrity, reducing stress on packers, tubing, and other completion equipment. Expansion Joints are widely used in production, injection, geothermal, and well intervention operations where changes in temperature and pressure can cause tubing movement.

Our Expansion Joints are available for sale and lease, providing reliable flexibility and protection for onshore and offshore well completion systems.

Applications

Oil and gas production wells

Well completion operations

Tubing string movement compensation

Thermal expansion control

Injection wells

Geothermal wells

Offshore production

Onshore production

Well intervention

Artificial lift systems

Technical Features

Manufactured from high-strength alloy steel or corrosion-resistant alloys.

Accommodates tubing expansion and contraction caused by temperature and pressure changes.

Maintains pressure integrity throughout the operating range.

High-pressure and high-temperature (HPHT) capability.

Precision-machined sliding mechanism for smooth movement.

Corrosion- and wear-resistant construction.

Compatible with standard API tubing connections.

Available in multiple stroke lengths.

Low-maintenance and long service life.

Designed to meet international oilfield standards.

Available Types

Standard Expansion Joint

Heavy-Duty Expansion Joint

HPHT Expansion Joint

Production Expansion Joint

Injection Well Expansion Joint

Premium Expansion Joint

Custom-Designed Expansion Joint

Typical Specifications

Parameter Specification

Tubing Size 2⅜" – 7"

Working Pressure Up to 15,000 psi

Operating Temperature Up to 200°C

Stroke Length 6" – 120"

Material Alloy Steel, Stainless Steel, Inconel

Connection Type API Threaded Connections

Seal Material HNBR, FKM, or Aflas

Standards API and ISO Compliant

Key Benefits

Compensates for tubing expansion and contraction.

Reduces stress on packers and completion equipment.

Maintains well integrity under changing conditions.

Improves reliability of production systems.

Extends the service life of completion equipment.

Durable construction for harsh downhole environments.

Suitable for HPHT applications.

Easy to install and maintain.

Compatible with a wide range of completion systems.

Helps minimise non-productive time (NPT).

Industries Served

Oil & Gas Exploration

Offshore Production

Onshore Production

Well Completion Services

Well Intervention

Artificial Lift Operations

Geothermal Energy

Petroleum Engineering

Energy Service Companies

National Oil Companies (NOCs)

Expansion Joint Sales and Lease

We supply new and refurbished Expansion Joints from leading global manufacturers for both sale and short-term or long-term lease. Every unit undergoes comprehensive inspection, dimensional verification, pressure testing, and quality assurance to ensure dependable performance in demanding downhole environments.

Our Sales & Leasing Services Include

New and refurbished Expansion Joints.

Daily, weekly, monthly, and project-based rental options.

Inspection, pressure testing, and certification.

Maintenance and refurbishment services.

Replacement seals and spare parts.

Technical support and equipment selection.

Fast mobilisation for onshore and offshore projects.

Worldwide logistics and delivery.

Complete documentation, inspection reports, and quality certificates.

Our Expansion Joints are engineered to provide reliable tubing movement compensation while maintaining pressure integrity throughout the life of the well. Designed for durability, flexibility, and dependable performance, they help protect critical completion equipment, improve production efficiency, reduce maintenance costs, and enhance overall well integrity in demanding operating conditions.
