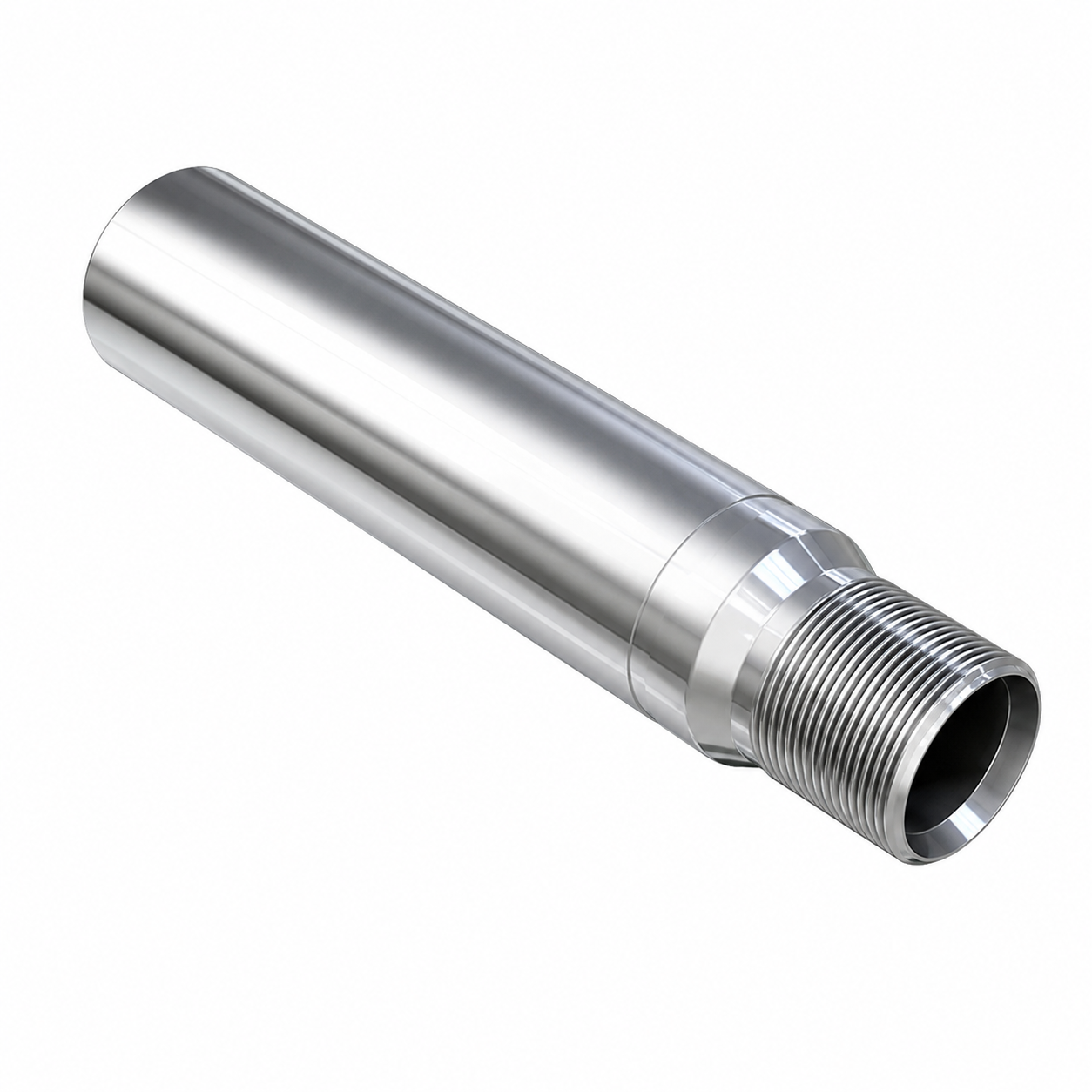

Landing Nipple

Landing Nipple

A Landing Nipple is a specially designed section of production tubing installed in oil and gas wells to provide a secure seating profile for wireline or slickline-retrievable flow control devices. It enables operators to install, retrieve, and replace downhole tools without pulling the tubing string, reducing intervention costs and minimizing production downtime.

Landing nipples are commonly used in onshore and offshore oil and gas production, gas lift systems, well testing, completion operations, and intervention programs.

Features

Manufactured from high-strength alloy steel or stainless steel.

Precision-machined internal locking profile.

Corrosion-resistant coating or CRA material options.

Compatible with wireline and slickline operations.

Suitable for high-pressure and high-temperature (HPHT) wells.

Available with premium threaded or API connections.

Designed for long service life under harsh downhole environments.

Can be customized for specific completion designs.

Technical Specifications

Specification Details

Product Type Landing Nipple

Application Production Tubing Completion

Material AISI 4140, 4145H, 4130, Stainless Steel, Inconel (Optional)

Standard API 5CT, API 14A, API 11D1

Connection API EUE, NUE, Premium Threads

Pressure Rating Up to 15,000 psi

Temperature Rating Up to 350°F (177°C) or higher upon request

Sizes 2⅜", 2⅞", 3½", 4½", 5½", 7"

Length Custom lengths available

Seal Type Metal-to-Metal or Elastomer

Service Standard, Sour Service (NACE MR0175)

Installation Wireline, Slickline, Completion String

Types of Landing Nipples

No-Go Landing Nipple

Selective Landing Nipple

Top No-Go Landing Nipple

Bottom No-Go Landing Nipple

Equalizing Landing Nipple

X-Type Landing Nipple

R-Type Landing Nipple

F-Type Landing Nipple

Baker Style Landing Nipple

Otis Style Landing Nipple

Compatible Downhole Equipment

Landing nipples accommodate numerous retrievable downhole tools, including:

Wireline plugs

Standing valves

Flow control valves

Chokes

Blanking plugs

Check valves

Dummy valves

Pressure control devices

Gas lift valves

Lock mandrels

Applications

Oil production wells

Gas production wells

Water injection wells

Gas lift completions

Well intervention

Production testing

Pressure control operations

Well integrity management

Temporary well suspension

Zonal isolation systems

Advantages

Eliminates the need to pull tubing during intervention.

Reduces operational costs.

Shortens well intervention time.

Improves production efficiency.

Enables rapid installation and retrieval of flow control equipment.

Enhances well safety and integrity.

Provides reliable sealing under high-pressure conditions.

Suitable for repeated wireline servicing.

Extends the operational life of completion equipment.

Available Sizes

2⅜ in.

2⅞ in.

3½ in.

4½ in.

5½ in.

7 in.

Custom sizes available upon request.

Industries Served

Oil & Gas Exploration

Offshore Production

Onshore Production

Well Completion Services

Well Intervention Companies

Drilling Contractors

Energy Service Providers

Petroleum Production Facilities

Landing Nipple Sales & Lease

We supply high-quality Landing Nipples for both sale and rental to support short-term projects, long-term production campaigns, well intervention, and completion operations. All equipment is inspected, pressure-tested, and certified before delivery to ensure maximum reliability and compliance with industry standards.

Our Sales & Rental Services Include

New and refurbished Landing Nipples

Short-term and long-term rental options

Offshore and onshore deployment

Pressure testing and inspection certificates

Equipment mobilization and demobilization

Technical consultation and product selection

Nationwide and international delivery

Emergency equipment supply

Maintenance and refurbishment services

Bulk supply for drilling and production projects

Our Landing Nipples are engineered to deliver dependable performance in demanding downhole environments, making them an ideal solution for operators seeking safe, efficient, and cost-effective well completion and intervention equipment.
