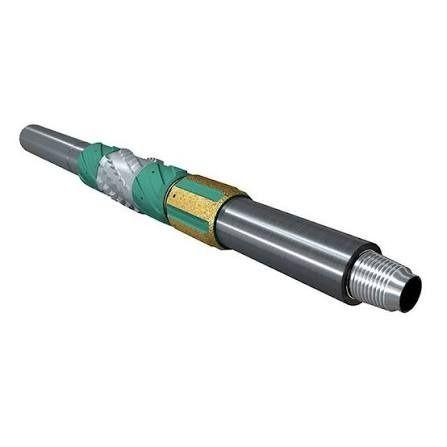

Milling Tool

Milling Tools

Milling Tools are specialized downhole cutting tools used in oil and gas drilling, workover, and well intervention operations to remove, cut, dress, or machine metal objects inside a wellbore. They are commonly employed to mill packers, bridge plugs, cement retainers, tubing, casing, fish, and other obstructions, allowing operators to restore well access or prepare the well for subsequent completion or production activities.

Manufactured from premium alloy steel with tungsten carbide cutting structures, milling tools are designed to withstand high torque, impact, and abrasive downhole conditions while delivering efficient cutting performance.

Features

Heavy-duty alloy steel body construction.

Premium tungsten carbide cutting inserts.

High wear and abrasion resistance.

Optimized hydraulic flow for efficient debris removal.

Suitable for rotary drilling and workover operations.

Available for both standard and custom milling applications.

Compatible with conventional and directional wells.

Designed for high torque and high-impact operations.

Long service life with replaceable cutting structures.

Suitable for HPHT (High Pressure High Temperature) environments.

Technical Specifications

Specification Details

Product Type Downhole Milling Tool

Standard API Spec 7-1

Material AISI 4145H Modified Alloy Steel

Cutter Material Tungsten Carbide Inserts (TCI)

Connection API Regular, IF, FH, NC Threads

Outside Diameter 2⅞" – 13⅜"

Length Varies by tool type

Operating Pressure Up to 20,000 psi

Temperature Rating Up to 400°F (204°C)

Rotation Clockwise Rotary Operation

Service Standard & Sour Service (NACE MR0175)

Types of Milling Tools

Junk Mill

Flat Bottom Mill

Concave Mill

Taper Mill

Watermelon Mill

Pilot Mill

Window Mill

String Mill

Section Mill

Dress Mill

Packer Mill

Casing Mill

Cement Mill

Washover Mill

Turbo Mill

Applications

Milling tools are widely used for:

Removing bridge plugs.

Milling permanent and retrievable packers.

Removing cement retainers.

Cutting casing windows for sidetracking.

Dressing damaged casing.

Milling tubing restrictions.

Fishing operations.

Removing downhole debris.

Cleaning casing and tubing.

Preparing wells for abandonment.

Well intervention and workover operations.

Plug and abandonment (P&A) projects.

Compatible Equipment

Drill Pipe

Work Strings

Bottom Hole Assemblies (BHA)

Hydraulic Drilling Jars

Mechanical Jars

Fishing Tools

Overshots

Washover Pipe

Stabilizers

Rotary Tables

Top Drives

Mud Motors

Advantages

Fast and efficient removal of downhole obstructions.

High cutting efficiency with reduced milling time.

Excellent wear resistance for extended service life.

Improves wellbore accessibility.

Reduces non-productive time (NPT).

Suitable for challenging drilling environments.

Reliable performance in vertical, directional, and horizontal wells.

Cost-effective solution for well intervention.

Available for a wide range of milling applications.

Minimizes operational downtime.

Available Sizes

2⅞"

3½"

4⅛"

4¾"

5"

5½"

6⅛"

6¾"

7"

7⅝"

8½"

9⅝"

10¾"

13⅜"

(Custom sizes are available upon request.)

Industries Served

Oil & Gas Exploration

Offshore Drilling

Onshore Drilling

Well Intervention Services

Well Completion Operations

Workover Services

Plug & Abandonment (P&A)

Directional Drilling

Geothermal Drilling

Energy Service Companies

Milling Tools Sales & Lease

We supply high-performance Milling Tools for both sale and rental, supporting drilling contractors, oilfield service companies, and production operators with dependable equipment for milling, fishing, and well intervention operations. Every tool is inspected, dressed, and quality-tested before delivery to ensure reliable field performance and compliance with API standards.

Our inventory includes a comprehensive range of milling tools for routine maintenance, complex fishing operations, casing exit projects, and plug and abandonment campaigns. Flexible rental terms are available for short-term interventions as well as long-term drilling and workover projects.

Our Sales & Rental Services Include

New and refurbished milling tools.

Short-term and long-term rental packages.

API inspection and certification.

Function testing and quality assurance.

Equipment mobilization and demobilization.

Technical consultation and tool selection.

Custom milling tool configurations.

Emergency equipment supply.

Maintenance and refurbishment services.

Nationwide and international delivery.

Our milling tools are engineered to deliver maximum cutting efficiency, exceptional durability, and dependable performance, enabling operators to safely and efficiently remove downhole obstructions, reduce non-productive time, and optimise drilling and well intervention operations.
