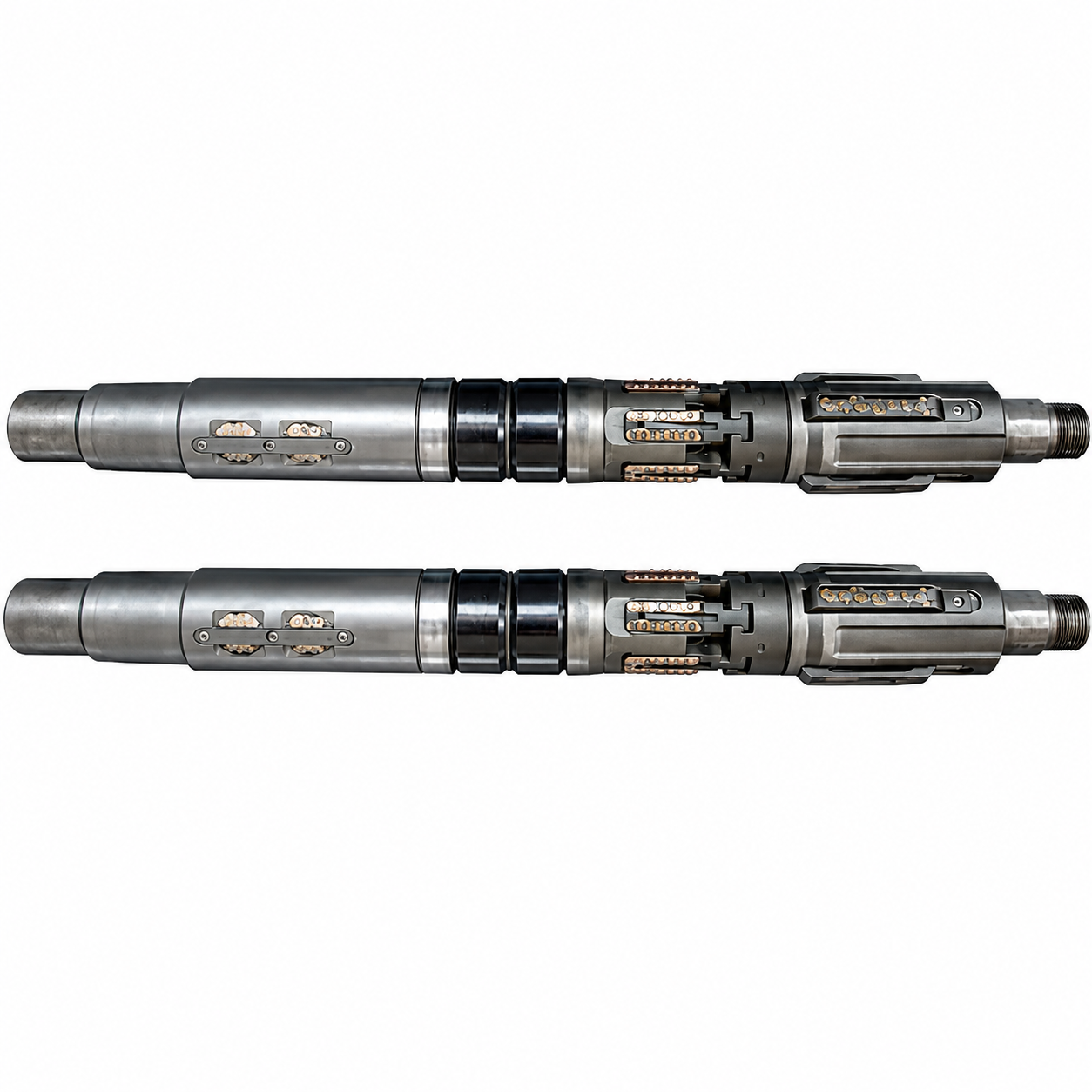

Retrievable Packer

Retrievable Packer

A Retrievable Packer is a downhole completion tool used in oil and gas wells to create a pressure-tight seal between the tubing and casing. Unlike permanent packers, retrievable packers can be set, released, and recovered from the well for maintenance, workover, or reuse. They are widely used in production, well testing, stimulation, water shutoff, and zonal isolation applications.

Designed for durability and operational flexibility, retrievable packers provide reliable sealing performance under high-pressure and high-temperature (HPHT) conditions.

Applications

Oil and gas production wells

Onshore and offshore drilling

Workover operations

Well completion

Injection wells

Water shutoff operations

Acidizing and hydraulic fracturing

Sand control operations

Pressure testing

Zonal isolation

Geothermal wells

Technical Specifications

Specification Details

Product Type Retrievable Packer

Setting Method Mechanical, Hydraulic, Wireline or Electric Line

Retrieval Method Straight Pull, Rotation, Hydraulic Release

Material Alloy Steel (4140/4145), Stainless Steel, Inconel (Optional)

Elastomer Material Nitrile (NBR), HNBR, Viton®, Aflas®

Outside Diameter 2⅜" – 9⅝"

Pressure Rating Up to 15,000 psi

Temperature Rating Up to 204°C (400°F)

Connection API Tubing Threads, Premium Connections

Slip Material Heat-Treated Alloy Steel

Seal Element Single, Dual or Triple Element

Standard API 11D1, API Q1, ISO 9001

Service Standard, Sour Service (H₂S), CO₂ Service

Key Features

Fully retrievable and reusable

Reliable pressure-tight sealing

Excellent zonal isolation

High load-bearing capability

Corrosion-resistant construction

Suitable for HPHT wells

Compatible with various tubing sizes

Easy installation and retrieval

Available in mechanical and hydraulic configurations

Long operational life with minimal maintenance

Working Principle

The retrievable packer is run into the well on tubing or work string and positioned at the desired depth.

The packer is activated mechanically or hydraulically.

Slips expand outward to grip the casing wall securely.

Elastomer sealing elements compress to create a pressure-tight seal between the tubing and casing.

The seal isolates selected zones, allowing production, injection, testing, or stimulation operations.

When operations are complete, the release mechanism disengages the slips and seal elements, allowing the packer to be retrieved and reused.

Advantages

Can be removed without milling

Reduces workover costs

Reusable for multiple operations

Excellent sealing efficiency

Quick installation and retrieval

High-pressure resistance

Suitable for vertical, deviated and horizontal wells

Compatible with various completion systems

Low maintenance requirements

Improved well integrity and operational efficiency

Available Types

Mechanical Retrievable Packer

Hydraulic Retrievable Packer

Compression Set Packer

Tension Set Packer

Hookwall Packer

Production Packer

Injection Packer

Test Packer

High-Temperature Retrievable Packer

Dual String Retrievable Packer

Industries Served

Oil & Gas Exploration

Well Completion Services

Well Intervention Companies

Drilling Contractors

Energy Service Companies

Geothermal Projects

Carbon Capture and Storage (CCS) Wells

Inspection Before Installation

Verify thread condition and dimensions.

Inspect slips for wear or damage.

Examine sealing elements for cuts, cracks, or deformation.

Confirm compatibility with tubing and casing sizes.

Perform pressure testing where required.

Ensure all moving components operate smoothly.

Maintenance

Clean thoroughly after retrieval.

Replace worn seal elements and damaged slips.

Lubricate moving components with approved lubricants.

Protect threaded connections with thread protectors.

Store in a dry, corrosion-free environment.

Conduct routine inspections before redeployment.

Retrievable Packer Available for Sale & Lease

We supply premium-quality Retrievable Packers for sale and rental, providing dependable downhole isolation solutions for production, completion, and intervention operations in both onshore and offshore environments.

Our Services

Retrievable Packers for Sale

Short-Term Equipment Rental

Long-Term Leasing

Bulk Supply for Large Projects

Worldwide Delivery

Fast Mobilization

Equipment Inspection & Testing

Technical Consultation

Installation Support

After-Sales Service

Why Choose Our Retrievable Packers?

Manufactured to API 11D1 and international quality standards

Designed for high-pressure and high-temperature well conditions

Superior sealing performance and reliable retrieval

Available in multiple sizes, pressure ratings, and configurations

Competitive pricing for both purchase and lease

Prompt delivery to drilling and production locations worldwide

Our retrievable packers are engineered to deliver dependable zonal isolation, maximize production efficiency, and reduce intervention costs. Whether you require a single packer for a workover campaign or a fleet for large-scale field operations, we provide reliable equipment solutions backed by expert technical support.
