Tubing Anchor Catcher

Tubing Anchor Catcher (TAC) – Available for Lease

Product Overview

Our **Tubing Anchor Catchers (TACs)** are high-performance downhole completion tools designed to anchor and secure the production tubing string within the casing while minimizing tubing movement caused by pressure and temperature fluctuations during production or injection operations. Engineered for durability, reliability, and long service life, these tools help maintain tubing stability, protect completion equipment, and improve overall well integrity.

Available for lease, our Tubing Anchor Catchers provide oil and gas operators, drilling contractors, and well service companies with a cost-effective solution for production, injection, workover, and well completion projects without the need for significant capital investment.

Product Description

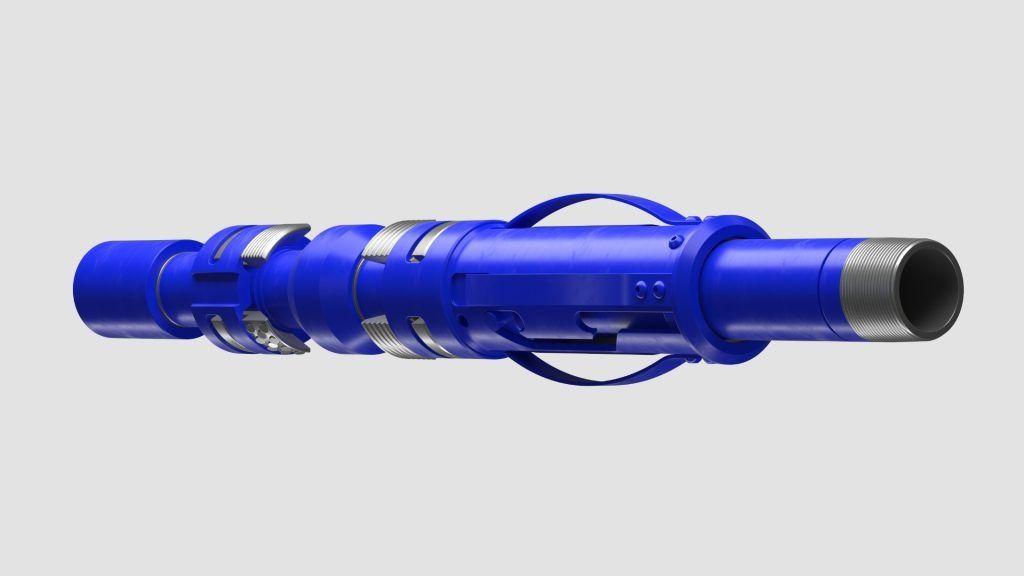

A **Tubing Anchor Catcher (TAC)** is a mechanical downhole tool installed in the production tubing string to anchor the tubing securely to the casing. It prevents unwanted tubing movement caused by pressure changes, thermal expansion, contraction, pump operation, and production loads while also acting as a backup catcher to support the tubing string if required.

By maintaining tubing tension and reducing mechanical stress on the tubing, packer, and wellhead equipment, the Tubing Anchor Catcher helps improve production efficiency, minimize wear, and extend the service life of critical downhole components.

Our TACs are precision-manufactured from high-strength alloy steel and are suitable for conventional wells, high-pressure/high-temperature (HPHT) wells, artificial lift systems, and injection wells. They are compatible with a wide range of tubing sizes and casing configurations.

Key Features

* Securely anchors the tubing string within the casing

* Minimizes tubing movement caused by pressure and temperature changes

* Reduces stress on packers and wellhead equipment

* Functions as both an anchor and tubing catcher

* High-strength alloy steel construction

* Excellent resistance to wear, corrosion, and fatigue

* Suitable for HPHT and sour service applications

* Compatible with artificial lift systems

* Reliable mechanical gripping mechanism

* Easy installation and retrieval during workover operations

* Long service life with minimal maintenance

Applications

Our Tubing Anchor Catchers are ideal for:

* Oil production wells

* Gas production wells

* Water injection wells

* Artificial lift installations

* Electrical Submersible Pump (ESP) completions

* Rod pump systems

* Gas lift completions

* Progressive Cavity Pump (PCP) systems

* High-pressure/high-temperature (HPHT) wells

* Offshore production facilities

* Onshore production operations

* Well completion and workover projects

Industries Served

Our Tubing Anchor Catchers support operations across various sectors, including:

* Oil & Gas Exploration

* Upstream Production

* Well Completion Services

* Artificial Lift Operations

* Offshore Production

* Onshore Production

* Well Intervention Services

* Enhanced Oil Recovery (EOR)

* Energy Infrastructure Development

Benefits of Leasing

Leasing our Tubing Anchor Catchers provides numerous operational and financial benefits:

* Reduced capital expenditure

* Flexible short-term and long-term lease options

* Immediate equipment availability

* Access to certified and inspected equipment

* Lower maintenance and storage costs

* Technical support and engineering assistance

* Rapid delivery to project locations

* Ideal for drilling, completion, and workover campaigns

Performance Advantages

Our Tubing Anchor Catchers help operators achieve:

* Improved tubing stability

* Enhanced well integrity

* Reduced tubing movement and vibration

* Extended life of packers and completion equipment

* Increased production efficiency

* Lower maintenance costs

* Reduced risk of tubing failure

* Improved artificial lift performance

* Greater operational reliability

* Minimized non-productive time (NPT)

Technical Specifications

Specifications may vary depending on well design and completion requirements.

| Specification | Details |

| ----------------------------- | ------------------------------------------------------------------------------------------ |

| **Tubing Size Compatibility** | **2⅜" – 5½"** |

| **Casing Size Compatibility** | **4½" – 9⅝"** (larger sizes available upon request) |

| **Working Pressure** | Up to **10,000 psi** (higher ratings available) |

| **Operating Temperature** | Up to **200°C (392°F)** |

| **Material** | High-strength Alloy Steel, Stainless Steel, Duplex Stainless Steel (application dependent) |

| **Anchor Type** | Mechanical Slip Anchor |

| **Service Environment** | Standard Service, Sour Service (NACE MR0175/ISO 15156), and HPHT |

| **Installation** | Production Tubing String |

| **Connection Type** | API Tubing Threads or Premium Connections |

| **Compliance** | Manufactured in accordance with API, ISO, and NACE standards |

Safety Features

Every Tubing Anchor Catcher is engineered with safety and reliability in mind and includes:

* High-strength slip mechanism for secure anchoring

* Precision-machined load-bearing components

* Corrosion-resistant materials for extended service life

* Pressure-tested construction

* High fatigue resistance under cyclic loading

* Full material traceability

* Comprehensive non-destructive testing (NDT)

* Compliance with international oilfield safety and quality standards

Why Choose Driscoil Equipment?

At **Driscoil Equipment**, we supply premium well completion and production equipment designed to deliver exceptional reliability, safety, and operational performance. Every Tubing Anchor Catcher is thoroughly inspected, pressure-tested, and quality-assured before deployment to ensure dependable operation in demanding downhole environments.

Our experienced technical team provides expert guidance in selecting the appropriate TAC based on tubing size, casing configuration, operating conditions, and artificial lift requirements, ensuring optimum performance and long-term well integrity.

Contact Us

Whether your project involves oil and gas production, artificial lift installations, well completions, or workover operations, our **Tubing Anchor Catchers** provide the stability, durability, and reliability required to maintain efficient and safe well operations.

Contact Driscoil Equipment today to request a quotation, discuss your project requirements, and explore our flexible leasing solutions. Our team is ready to provide the right Tubing Anchor Catcher solution to support your production and completion operations.
